Product Description

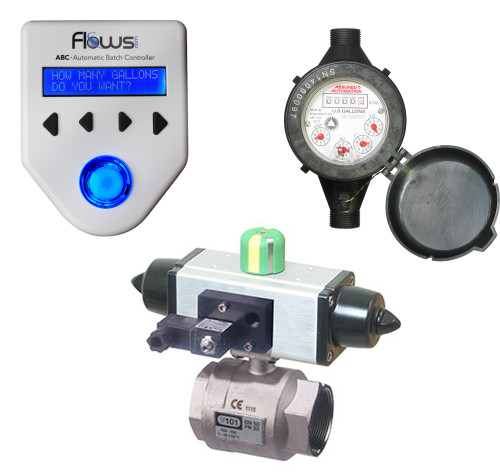

Create a complete batching system above that includes the ABC-2020 Automatic Batch Controller, a mechanical water meter, and an air actuated ball valve.
Using an air operated ball valve provides the best of both worlds:
- Full port for unrestricted flow
- Fast open and close
Valve Types
All valves available here are full port ball valves with NPT connections. P2 series PVC valves also include glue socket connections.
| 101 Series Nickel Plated Brass |
250LF Series Lead Free Brass |
P2 Series PVC |
26 Series Stainless Steel |
36 Series Stainless Steel |
 |
 |
 |
 |
 |
| not repairable | not repairable | 3-piece "true-union" body repairable |
2-piece body repairable |
3-piece "swing out" body repairable |
All valves included in these systems are actuated with an industrial dual scotch yoke spring return pneumatic actuator that is actuated by a 12VDC air solenoid valve with 80 PSI supply air. When the controller energizes the solenoid, the actuator opens the valve. When it is de-energized, the air vents from the actuator and springs inside the actuator are used to close the valve. This also provides a "fail-safe" position, so in the event of power loss, the valve will close.
Need help selecting the right valve? Give us a call at 1-855-871-6091
Meter Types
All meters available here are mechanical meters with a reed switch dry contact pulse output.
|
WM-PC Series Max. Temp = 105˚F |
WM-NLC Series Max. Temp = 122˚F |
WM-NLCH Series Max. Temp = 194˚F |
D10 Series Max. Temp = 122˚F |
 |
 |
 |
 |
| 1/2" to 1 1/2" NPT | 1/2" to 2" NPT | 1/2" to 2" NPT | 1/2" to 1" NPT 1 1/2" to 2" Oval flange |
| Must be installed Horizontally | Can be installed Vertically | ||
Need help selecting the right meter? Give us a call at 1-855-871-6091
