Product Description

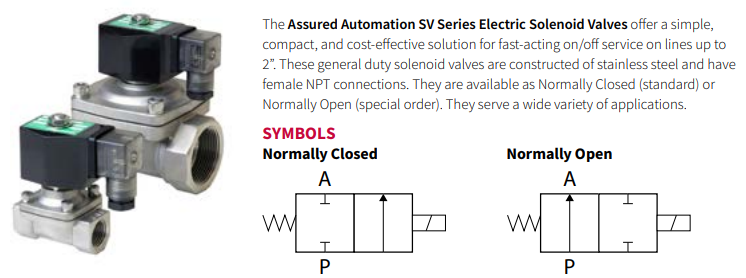

The SV Series is a general purpose, stainless steel, 2-way solenoid valve with NPT end connections that can be used in a wide variety of applications.
Specifications
End Connections
- NPT Threaded (1/4" to 2")
- G Threaded (1/4" to 2" [special order])
Temperature Range:
- Up to 302°F (Viton®)
- Up to 248°F (EPDM [special order])
Pressure Range:
- Normally Closed:
1/4": up to 73 PSI
3/8" to 1 1/2": up to 145 PSI
2": up to 102 PSI
- Normally Open: [special order]
1/4": up to 58 PSI
3/8" to 1 1/2": up to 102 PSI
2": up to 73 PSI
Materials:
- Body - Stainless Steel 304
- Seats and Seals - Viton® or EPDM
SV Series Datasheet
SV Series Price ListProduct Videos
Custom Field
Valve Type Fast-acting on/off
Body Material Stainless Steel
Actuator Electric
Connection Type NPT Female
Fail Position Closed
