Product Description

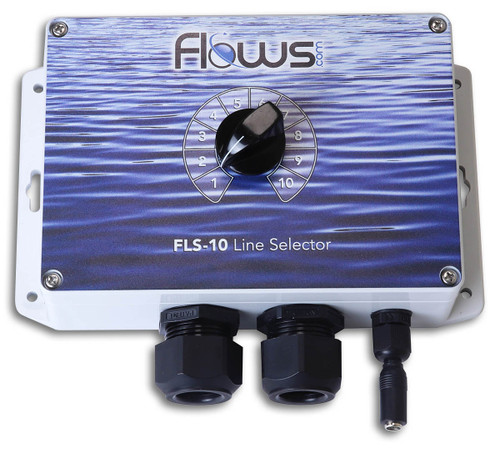

The FLS-10 is a weatherproof control box for opening one of (up to) 10 valves with 12VDC 3A power from the included wall plug power supply.
It can be used to:
- directly power 12VDC ball valves with capacitive return
- provide a 12VDC control signal, for ball valves with reversing motor actuators
- directly power 12VDC solenoid valves (not indefinitely - only when used as the batch on/off)
- power 12VDC air solenoid valves on spring return pneumatic actuators
- control relays that control power to valves with actuators
- control relays that control power to pumps
The most common use for this control box and the main reason that we developed it is to allow a single Batch control system to service multiple tanks, mixers, or vessels. In this application, there are 2 different setups to consider:

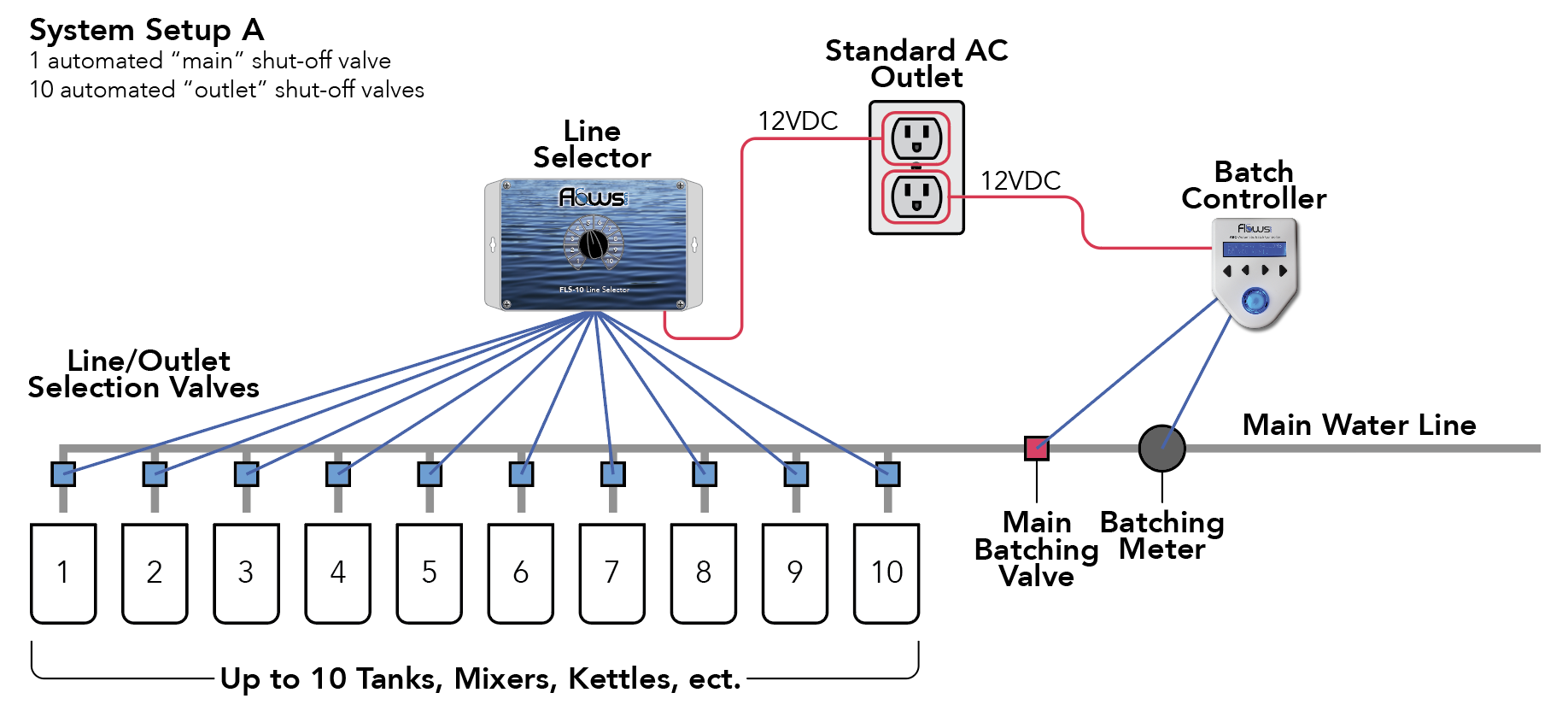

1) As a dedicated, stand-alone system for line/outlet selection
In this case, the batch control system would be placed upstream of the valve manifold or line branching from the main line. For this solution there is a main on/off valve that is controlled by the batch controller. The line selection valves function independently of the batch controller as a separate system.
*** ***

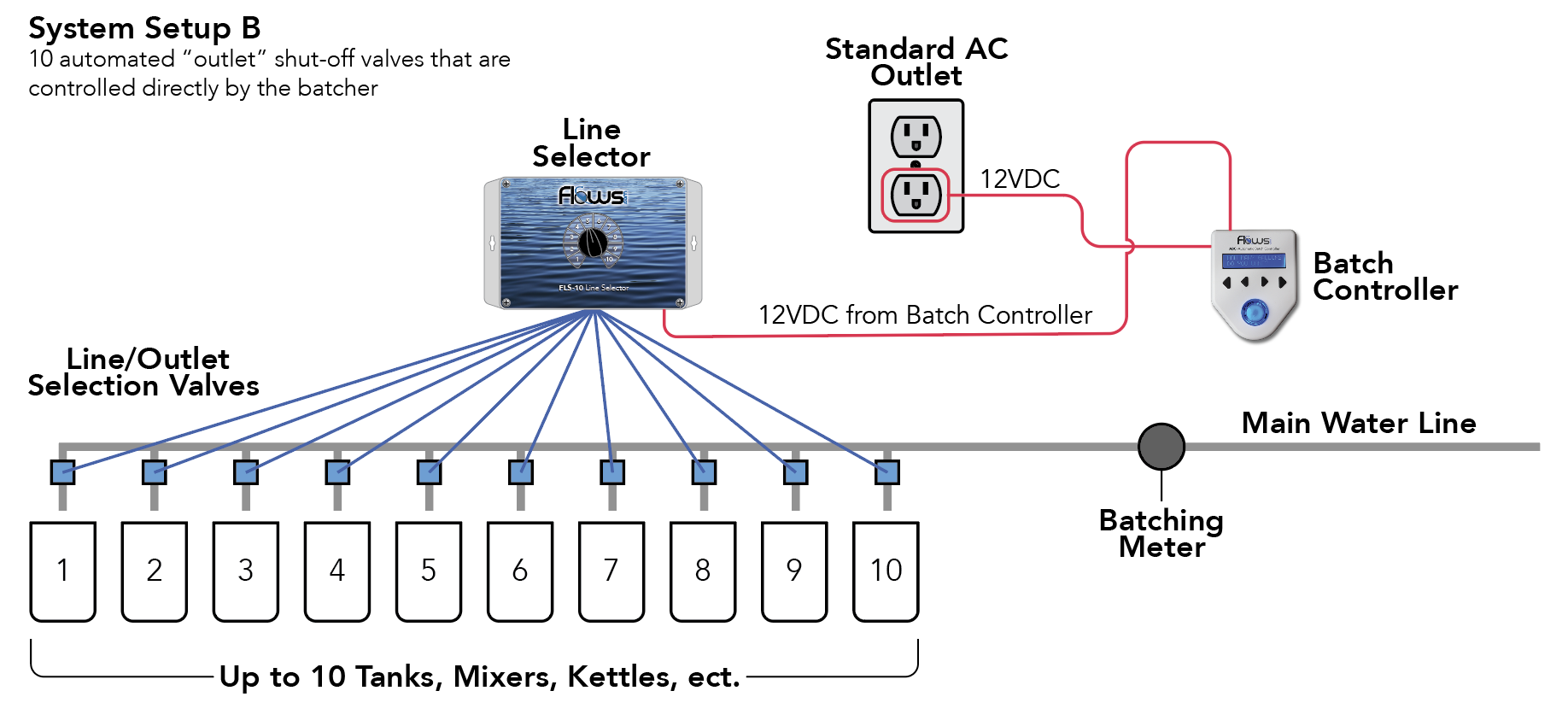

2) As part of the batching system itself
In this case, the line selector would divert power from the batch control system's "valve" port to the selected line's valve. No main on/off valve is needed.
