Product Description

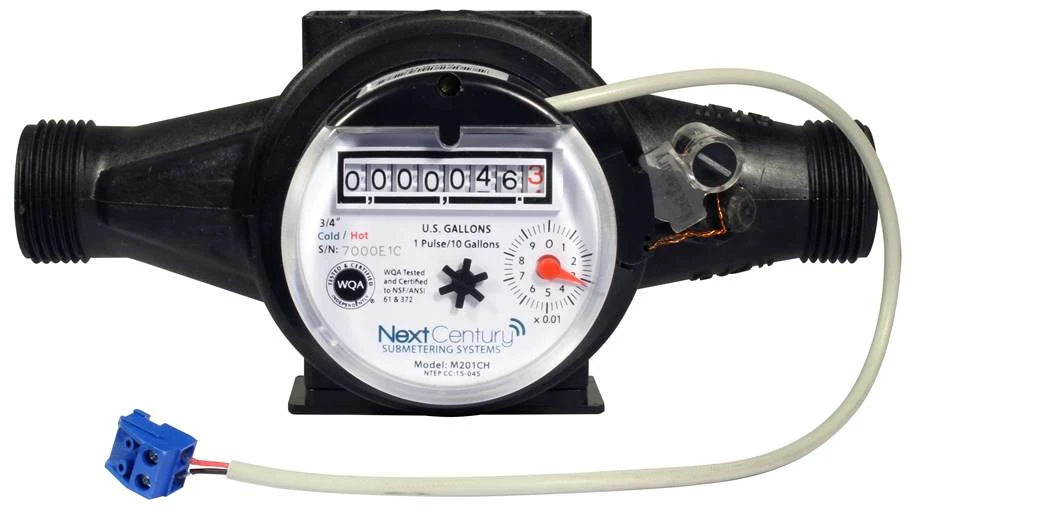

Utilizing the multi-jet principal of measurement, this 3/4" NPT meter is made of the highest grade polymer. This allows it to be not only, very light weight and durable but also economical. In addition, it can be installed horizontally or vertically making it very versatile for a number of applications. These meters meet the Federal Drinking Water Act’s lead requirements. The meter is calibrated for maximum pass rates in California weights and measures tests. The accuracy of this meter is +/- 1.5% and with the ability to measure to the nearest hundredth of a gallon with a simple to read register. An included Leak detector will indicate when there is a very small flow passing through the meter (accurately down to 0.50 gpm). The meter also comes complete with a pulse output which is set for 1 pulse for every 10 gallons. This is useful when you need to read the measurement data from somewhere other than where the meter is installed.
FEATURES:
- Intended for Indoor Use Only
- California Calibration
- These meters are calibrated to a different standard. The AWWA standard allows for 3% variance on low flow and 1.5% on medium and high flow but to be a CA meter these are calibrated to 0.1% standard in maximize the pass rate in CA. This requires a lot more time and testing at the factory which is why they are different from the standard meters. This calibration is significant because manufacturers are not accepting returns from CA weights and measures due to faulty testing equipment and untrained staff.
- 4 Year Warranty on Manufacturing Defects
- Sealed Register for Tamper Resistance
- Fittings and Pulse Output (1 pulse/10 gallons) Included Standard
- Flow Range: 2-25 GPM
- Max Flow: 30 GPM
- Min Flow: .50 GPM
- Max Pressure: 150 PSI
- Max Temp: 194 F
- Complies with NSF/ANSI Standard 61
- NTEP Certified
- Accuracy: +/- 1.5%
- Installation: Only Directly Vertical or Directly Horizontal (NOTE: IF USING FOR HOT WATER IN CA IT MUST BE HORIZONTAL FACE UP TO MEET CA STANDARDS)
- Register can be rotated for optimal viewing
- Fittings Included
- New York & Massachusetts state approvals
Download Datasheet for M201C/CA (COLD)
Download Datasheet for M201CH/CA (HOT)
Download New York Certificate of Approval
Download Massachusetts Accepted Plumbing Products Approved
Download Installation Manual
