Product Description
Application
-

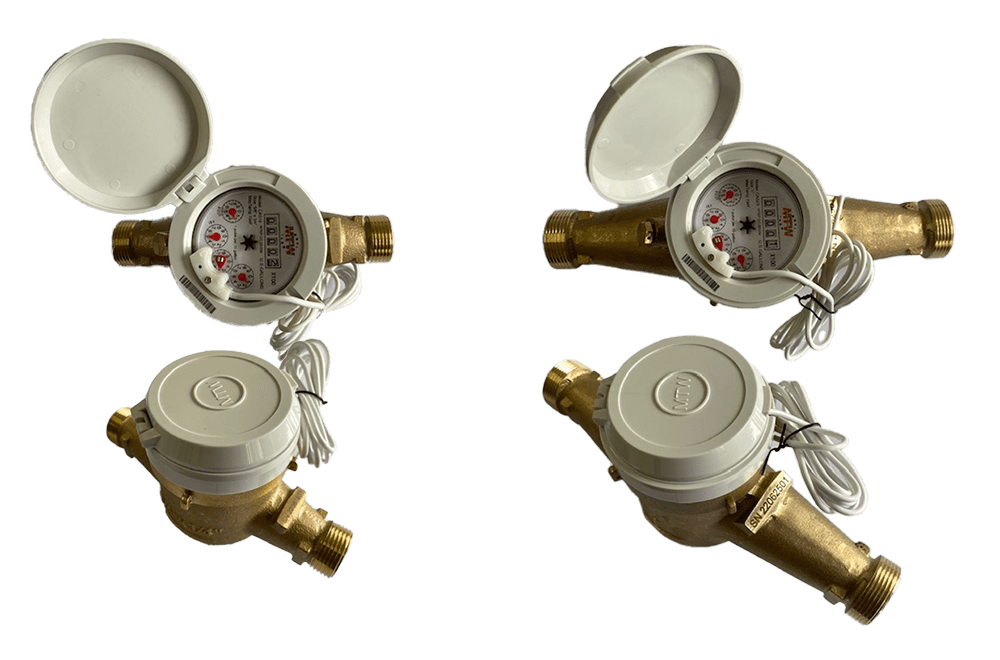

The MTW-CAS water meter is for use in measurement of hot or cold water in residential, commercial and industrial services where flow is in one direction only.
-
The multi-jet measuring chamber design ensures quiet operation with low wear characteristics.
-
The MTW-CAS main casing is made of brass that is NSF/ANSI 372 certified.
-
Horizontal or vertical installation acceptable, however, NTEP approves for horizontal installation only.
-
Indoor applications only.
-
Pulse output wire comes standard.
Features
Register
- All MTW-CAS meters come standard with pulse output.
- Available in 10 Gallons/Pulse and 1 Cubic Foot/Pulse.
- Includes a set of lead free couplings (2 nipples, 2 nuts and 2 fiber gaskets)
- Magnetic drive, low-torque registration ensures accuracy.
- Impact-resistant polycarbonate register lens resists scratching.
- High-resolution, low-flow leak detection.
Lead Free Main Case
- Made from lead free brass.
- NSF/ANSI 372 certified.
- NTEP approved in the horizontal position
- Electrical grounding continuity.
Measuring Chamber
- Velocity-type (multi-jet) measuring chamber.
- Widest effective flow range for maximum revenue capture.
- Polymer measuring chamber materials maximize long-term accuracy and reduce wear.
